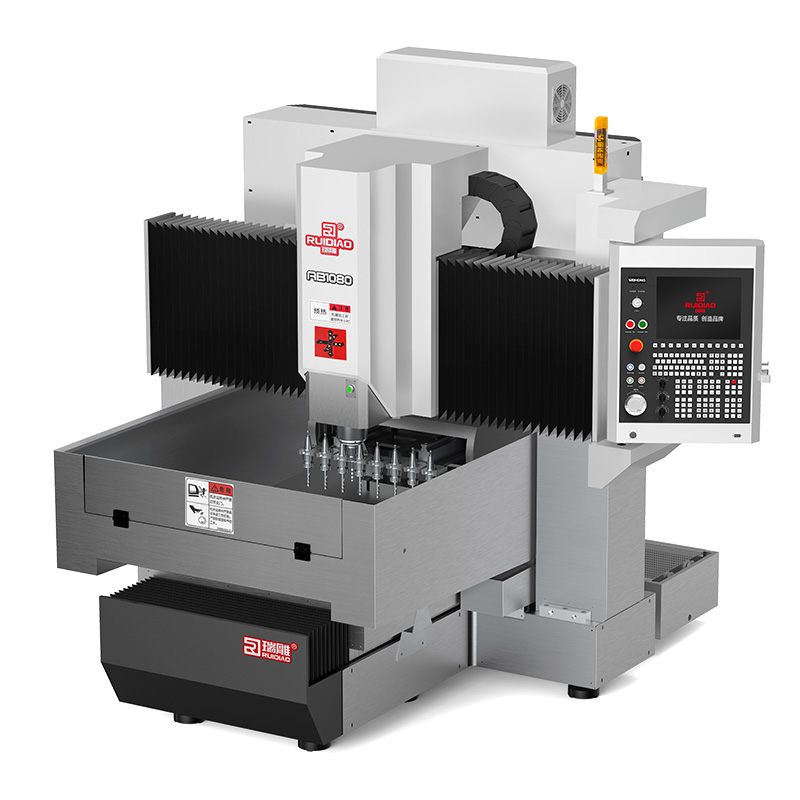

AB1080 3-Axis High-Speed Gantry CNC
AB1080 3-Axis High-Speed Gantry CNC
AB1080 3-Axis High-Speed Gantry CNC- Travel (X/Y/Z)1,000X800X200mm
- Worktable Size1,000X800mm
- Bed materialmarble
- Tool MagazineIn-line tool changer 8 pcs
- Spindle Specs7.5kW 24,000rpm(Φ120)
- Max. Rapid Rate18 m/min
- Guideway Spec (X/Y/Z)Roller 35/35/35
- Machine Dimension2,248X2,581X2,370mm
Casting
AB1080采用大理石床身结构
The bottom bed is made of raw polished marble.
The machine adopts fixed-beam gantry structure, and the water basin is designed above the table, so the whole machine can use tap water as cutting fluid to process products.
Ind. App.
Industry applications
High-speed gantry CNC carving machines are widely used in various industries.
Product Advantages:
AB1080 机床搭载 7.5kW BT30 自动换刀高速电主轴，大功率高转速加持，大幅提升切削性能与加工效率；整机采用紧凑式设计，搭配背挂式配电箱，空间利用率更高，占地更省。
- High precision and stability: 3-axis heavy-duty roller guideway + marble bed, high positioning/repeating accuracy and vibration resistance;
- Durable and rust-proof: the water basin is made of 304 stainless steel, rust-proof and corrosion-proof under the working condition of tap water coolant, and the equipment has a longer life;
- Space-efficient: back-mounted power distribution box, integrated design significantly saves the space occupied by the plant;
- High-quality configuration: standard with NK500 system, automatic tool setting instrument, tool magazine, etc., spindle speed 24000rpm, high machining efficiency, more convenient operation;
- Strong adaptability: Can be equipped with a vacuum adsorption table for both pressing and suction, meeting diverse workpiece fixturing needs and adapting to multi-scenario production.
Core Configuration
Smart Core
Equipped with the Weihong NK500 system for efficient processing and reduced labor costs.
Rui Diao continuously optimizes and improves through the ongoing use of machine tools. Providing users with more efficient machine tools is our original intention and mission.
Ctrl Sys
The NK500 motion control system is an efficient CNC system jointly developed by Ruida and Weihong Co., Ltd.
Equipped with a large 15-inch screen, it displays more content and reduces page turns during operation. It adopts a full keyboard layout and more function keys, allowing most frequently used functions to be operated with one key. It is equipped with knobs for machine speed, spindle speed, and feed rate, enabling rapid adjustment of machining speed.
- NC engineering file quick download
- One-click tool change
- One-key automatic tool changer
- Multiple coordinate systems
- USB network cable driver
- OPC UA\MTConnect
- NcGateway Gateway
- Chinese-English bilingual
Model parameters
TECHNICAL PARAMETER
For detailed technical specifications, please contact customer service or call 400-100-6952.
| Model | A1080 | AB1080 | AB1290 |
|---|---|---|---|
| X/Y/Z working stroke(mm)/(in) | 1,000X800X200 39.3″X31.5″X7.9″ | 1,000X800X200 39.3″X31.5″X7.9″ | 1,200X900X200 47.2″X35.4″X7.9″ |
| Table size (mm)/(in) | 1,000X800 39.3″X31.5″ | 1,000X800 39.3″X31.5″ | 1,200X900 47.2″X35.4″ |
| Workpiece clamping method | Dual-use, Vacuum Suction Cup | Dual-use, Vacuum Suction Cup | Dual-use, Vacuum Suction Cup |
| Auxiliary workbench material | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Vacuum table zoning control | Zone 1 | Zone 1 | Zone 1 |
| Vacuum chuck slot width (mm)/(in) | 6 0.236 | 6 0.236 | 6 0.236 |
| Suction cup screw hole specifications | M8*21mm | M8*21mm | M8*21mm |
| Maximum working load (kg)/(lb) | 500 1,100 | 500 1,100 | 600 1,300 |
| Machine tool main structure | marble | marble | marble |
| Machine tool outer sheet metal structure | half-mask | half-mask | half-mask |
| Spindle power (kW) | 7.5 | 7.5 | 7.5 |
| Spindle maximum speed (rpm) | 24,000rpm(Φ120) | 24,000rpm(Φ120) | 24,000rpm(Φ120) |
| Spindle coolers | oil cooler | oil cooler | oil cooler |
| Tool magazine type and capacity | In-line tool changer 8 pcs | D-shape tool changer 12 pcs / In-line tool changer 8 pcs | Disc servo 16 |
| Processing of blowing and flushing | standard equipment | standard equipment | standard equipment |
| Toolholder and Collet Specifications | NBT30-SK10/16 | NBT30-SK10/16 | NBT30-SK10/16 |
| Automatic Tool Setting Instrument | standard equipment | standard equipment | standard equipment |
| Rapid system speed (m/min)/(in/min) | 18 708 | 18 708 | 18 708 |
| Maximum cutting feed rate (m/min)/(in/min) | 18 708 | 18 708 | 18 708 |
| Guide specifications X/Y/Z | Ball 35/35/35 | Roller 35/35/35 | Roller 35/35/35 |
| Number of Z-axis sliders (only) | 4 | 4 | 4 |
| drive system | Vihon Assembly Drive | Vihon Assembly Drive | Vihon Assembly Drive |
| operating voltage | Three-phase 380V/50Hz | Three-phase 380V/50Hz | Three-phase 380V/50Hz |
| Rated power of the whole machine(kW) | 10 | 10 | 10 |
| Gas source pressure (MPa) | 0.6 | 0.6 | 0.6 |
| Automatic chip screw | 无 | 无 | 无 |
| Grease automatic lubrication system | standard equipment | standard equipment | standard equipment |
| Machine weight (kg)/(lb) | 3,400 7,500 | 3,400 7,500 | 4,500 10,000 |
| Electrical cabinet size (mm)/(in) | 无 | 无 | 无 |
| Machine size (mm)/(in) | 2,250x2,550x2,400 88.6″X100.4″X94.5″ | 2,250x2,550x2,400 88.6″X100.4″X94.5″ | 2,450x2,750x2,400 96.5″X108.2″X94.5″ |
| radiator (automobile) | 304 stainless steel water tank 200L | 304 stainless steel water tank 200L | 304 stainless steel water tank 200L |
Note: The double parameters in the charts are in metric and imperial units and are subject to change without notice.
