NH1326 3-Axis High-Speed Gantry CNC

Product Intro & Download
Casting
Ind. App.
Product Adv
Core Adv
Ctrl Sys
Spec Comp
Mtg Dims

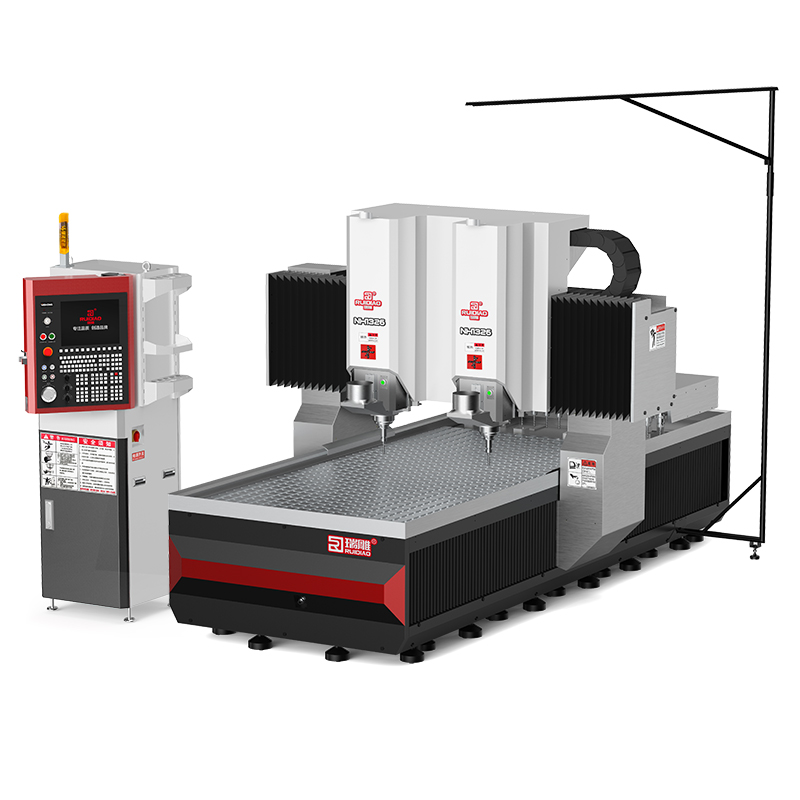

NH1326高速三轴龙门CNC（images 1）

NH1326 3-Axis High-Speed Gantry CNC

NH1326 3-Axis High-Speed Gantry CNC
  • Travel (X/Y/Z)1,300X2,600X220mm
  • Worktable Size1,300X2,600mm
  • Bed materialCast Iron Base
  • Spindle Specs7.5kW 24,000rpm(Φ120)
  • Tool MagazineNBT30 Linear 16 Tools
  • Max. Rapid Rate36 m/min
  • Guideway Spec (X/Y/Z)Roller 35/35/35
  • Machine Dimension3,057X3,898X2,084mm
PP sheetPVC sheetacrylic (loanword)plastic plateInsulating board
NH Series Machine Tool Catalog
NH Series Machine Tool Catalog
Download
Submit an inquiry about this product
Product modelNH1313NH1320NH1326NH1530*
Contact Name*
Phone number*
Industry*
I have read and agreePrivacy Policy*
Submitting!
Submission successful!
Submission failed!
Email error!
Phone error!
1800 +
User usage
100+
National Patent
150000+
Machine Tool General Assembly Workshop
12%
R&D cost ratio

NH1326高速三轴龙门CNC（images 2）

Cast iron machine tool

NH1326机型采用灰口铸铁

The all-cast-iron bed design effectively enhances stability and precision;

Heavy-duty, one-piece cast square-section gantry frame;

Integrally cast Z-axis slide plate and spindle sleeve;

Product Advantages:

NH1326是瑞雕设计的一款轻型龙门CNC机床，三轴全搭配35号重型滚柱导轨，主打塑料板材的CNC加工，搭载7.5kW高速电主轴，切削速度更快，搭载可旋转NK500一键面板，操作便捷。

  • High precision and stability: three-axis ball screw guide rails, high positioning/repeat positioning accuracy, strong resistance to heavy cutting.
  • Larger spindle: Equipped with a 120 mm high-speed electric spindle with a power output of 7.5 kW, making it easier to cut plastic sheets;
  • Dual Z-axis: A dual Z-axis is available as an option, enabling simultaneous machining of two workpieces and improving batch processing efficiency;
  • High-quality configuration: Standard NK500 system, automatic tool presetter, tool magazine, etc., spindle speed 15000rpm, high processing efficiency, more convenient operation;
  • Strong adaptability: Can be equipped with a vacuum adsorption table for both pressing and suction, meeting diverse workpiece fixturing needs and adapting to multi-scenario production.
100%Efficiency improvement
68%Cost savings
110%Production increase

Core Configuration

Smart Core

Equipped with the Weihong NK500 system for efficient processing and reduced labor costs.

NK500 Motion Control SystemThe NK500 motion control system, developed by RuiDiao's years of collaboration and communication with Weihong, has significant advantages in human-machine interaction.
One-key automatic tool changerThe tool inspection in the tool magazine is a daily task that is time-consuming and labor-intensive. Ruida achieves one-click execution for automatic tool setting of the entire tool magazine, doubling efficiency.
Extra-large screen12-inch extra-large display screen shows more content, convenient for viewing various machine tool parameters at any time, and reduces page-turning actions when operating the machine tool.
Compatible eng filesEspecially in the relief industry, the compatibility of .eng files makes operations more convenient, eliminating the need for cumbersome program conversions.
NH1326高速三轴龙门CNC（images 3）

Rui Diao continuously optimizes and improves through the ongoing use of machine tools. Providing users with more efficient machine tools is our original intention and mission.

Vacuum adsorption and fixingThe best clamping method for board processing is vacuum adsorption. We have two types: sealing strip and microporous suction cups, suitable for clamping materials of different thicknesses.
BT30 tool changerTool magazines are now indispensable for CNC machine tools and play a significant role in saving labor and increasing efficiency.
Grinding grade lead screwThe machine is equipped with P-grade grinding lead screws, which are much more precise than rolled lead screws and run more smoothly.
Roller guideNH1326机型配备了3组35号滚柱导轨，相比滚珠导轨，滚柱导轨有着更高负载能力，针对暴力切削能力更强。

NH1326高速三轴龙门CNC（images 4）

Ctrl Sys

The NK500 motion control system is an efficient CNC system jointly developed by Ruida and Weihong Co., Ltd.

Equipped with a large 15-inch screen, it displays more content and reduces page turns during operation. It adopts a full keyboard layout and more function keys, allowing most frequently used functions to be operated with one key. It is equipped with knobs for machine speed, spindle speed, and feed rate, enabling rapid adjustment of machining speed.

  • NC engineering file quick download
  • One-click tool change
  • One-key automatic tool changer
  • Multiple coordinate systems
  • USB network cable driver
  • OPC UA\MTConnect
  • NcGateway Gateway
  • Chinese-English bilingual

Model parameters

TECHNICAL PARAMETER

For detailed technical specifications, please contact customer service or call 400-100-6952.

ModelNH1313NH1320NH1326NH1530
X/Y/Z working stroke(mm)/(in)1,300X1,300X220
51.2″X51.2″X8.7″		1,300 × 2,000 × 220
51.2" x 78.7" x 8.7"		1,300X2,600X220
51.2″X102.4″X8.7″		1,500 × 3,000 × 220
59.0″ × 118.1″ × 8.7″
Table size (mm)/(in)1,300X1,300
51.2″X51.2″		1,300 × 2,000
51.2" x 78.7"		1,300X2,600
51.2″X102.4″		1,500 x 3,000
59.0" x 118.1"
Workpiece clamping methodT-slot / Vacuum Suction CupT-slot / Vacuum Suction CupT-slot / Vacuum Suction CupT-slot / Vacuum Suction Cup
Auxiliary workbench materialAluminum alloyAluminum alloyAluminum alloyAluminum alloy
Vacuum table zoning controlDistrict 3District 3District 3District 3
Vacuum chuck slot width (mm)/(in)6
0.236		6
0.236		6
0.236		6
0.236
Suction cup screw hole specificationsM8*21mmM8*21mmM8*21mmM8*21mm
Maximum working load (kg)/(lb)1,200
2,600		1,200
2,600		1,500
3,300		1,500
3,300
Machine tool main structureGray cast iron + marbleGray cast iron + marbleCast Iron BaseCast Iron Base
Machine tool outer sheet metal structureOpen-endedOpen-endedOpen-endedOpen-ended
Spindle power (kW)7.57.57.57.5
Spindle maximum speed (rpm)24,000rpm(Φ120)24,000rpm(Φ120)24,000rpm(Φ120)24,000rpm(Φ120)
Spindle coolersoil cooleroil cooleroil cooleroil cooler
Tool magazine type and capacityInline 16 handlesInline 16 handlesInline 16 handlesInline 16 handles
Processing of blowing and flushingstandard equipmentstandard equipmentstandard equipmentstandard equipment
Toolholder and Collet SpecificationsNBT30-SK10/16NBT30-SK10/16NBT30-SK10/16NBT30-SK10/16
Automatic Tool Setting Instrumentstandard equipmentstandard equipmentstandard equipmentstandard equipment
Rapid system speed (m/min)/(in/min)48
1,889		36
1,417		36
1,417		36
1,417
Maximum cutting feed rate (m/min)/(in/min)18
708		18
708		18
708		18
708
Guide specifications X/Y/ZRoller 35/35/35Roller 35/35/35Roller 35/35/35Roller 35/35/35
Number of Z-axis sliders (only)6666
drive systemVihon Assembly DriveVihon Assembly DriveVihon Assembly DriveVihon Assembly Drive
operating voltageThree-phase 380V/50HzThree-phase 380V/50HzThree-phase 380V/50HzThree-phase 380V/50Hz
Rated power of the whole machine(kW)10101010
Gas source pressure (MPa)0.60.60.60.6
Automatic chip screw无无无无
Grease automatic lubrication systemstandard equipmentstandard equipmentstandard equipmentstandard equipment
Machine weight (kg)/(lb)3,700
8,000		6,000
13,000		7,000
15,000		10,500
23,000
Electrical cabinet size (mm)/(in)758X608X2,115
29.8″X23.9″X83.3″		758X608X2,115
29.8″X23.9″X83.3″		758X608X2,115
29.8″X23.9″X83.3″		758X608X2,115
29.8″X23.9″X83.3″
Machine size (mm)/(in)3,057 × 2,520 × 2,084
120.3″ × 99.2″ × 82.0″		3,057 × 3,293 × 2,084
120.3″ × 129.6″ × 82.0″		3,057 × 3,898 × 2,084
120.3″ × 153.5″ × 82.0″		3,257 × 4,293 × 2,084
128.2″ × 169.0″ × 82.0″
radiator (automobile)无无无无

Note: The double parameters in the charts are in metric and imperial units and are subject to change without notice.
