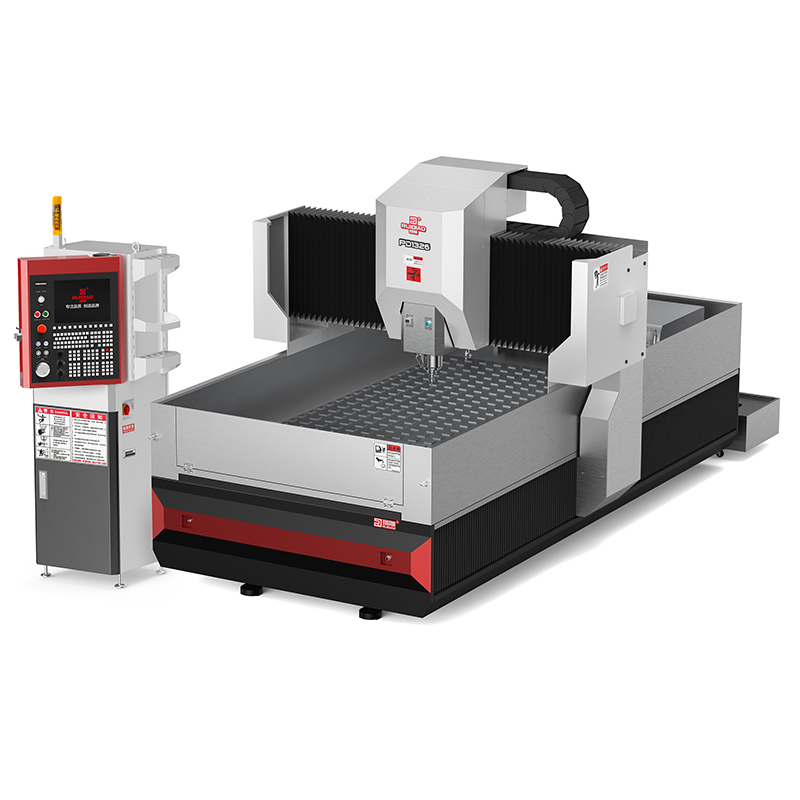

PD1326 3-Axis High-Speed Gantry CNC
PD1326 3-Axis High-Speed Gantry CNC
PD1326 3-Axis High-Speed Gantry CNC- Travel (X/Y/Z)1,300 × 2,600 × 190 mm
- Worktable Size1,300X2,600mm
- Bed materialGray cast iron + marble
- Spindle Specs11kW 18,000rpm(Φ150)
- Tool MagazineNBT40 Inline 12 Handle
- Max. Rapid Rate24m/min
- Guideway Spec (X/Y/Z)Roller 35/35/35
- Machine Dimension2,918 × 4,388 × 2,118 mm
marble countertop
PD1313Model with gray cast iron + marble countertop structure
Adopting marble as the machine table, the guide screw is uniformly installed on the reverse side of the marble, which is easy to adjust the precision of the machine;
Box-type gantry, more precise.
Large instrument-grade marble countertops for more stability;
Ind. App.
Industry applications
High-speed gantry CNC carving machines are widely used in various industries.
Product Advantages:
PD1326 机床搭载 11kW BT40 自动换刀高速电主轴，大功率高转速加持，大幅提升切削性能与加工效率；床身为轻量化钢架床身，台面为大理石，丝杆导轨统一安装在大理石上，使得整套Y轴系统和台面实时同步，减少误差。
- High precision and stability: All three axes adopt No.35 roller guideway, which can meet certain requirements of high machining intensity and machining precision;
- Durable and rust-proof: the water basin is made of 304 stainless steel, rust-proof and corrosion-proof under the working condition of tap water coolant, and the equipment has a longer life;
- Optional double head: The machine can be equipped with optional double Z-axis, which can machine two workpieces at the same time, doubling the efficiency;
- High-quality configuration: standard with NK500 system, automatic tool setting instrument, tool magazine, etc., spindle speed 24000rpm, high machining efficiency, more convenient operation;
- Strong adaptability: Can be equipped with a vacuum adsorption table for both pressing and suction, meeting diverse workpiece fixturing needs and adapting to multi-scenario production.
Core Configuration
Smart Core
Equipped with the Weihong NK500 system for efficient processing and reduced labor costs.
Rui Diao continuously optimizes and improves through the ongoing use of machine tools. Providing users with more efficient machine tools is our original intention and mission.
Ctrl Sys
The NK500 motion control system is an efficient CNC system jointly developed by Ruida and Weihong Co., Ltd.
Equipped with a large 15-inch screen, it displays more content and reduces page turns during operation. It adopts a full keyboard layout and more function keys, allowing most frequently used functions to be operated with one key. It is equipped with knobs for machine speed, spindle speed, and feed rate, enabling rapid adjustment of machining speed.
- NC engineering file quick download
- One-click tool change
- One-key automatic tool changer
- Multiple coordinate systems
- USB network cable driver
- OPC UA\MTConnect
- NcGateway Gateway
- Chinese-English bilingual
Model parameters
TECHNICAL PARAMETER
For detailed technical specifications, please contact customer service or call 400-100-6952.
| Model | PC1313 | PC1326 | PD1313 | PD1326 |
|---|---|---|---|---|
| X/Y/Z working stroke(mm)/(in) | 1,300 × 1,300 × 190 51.2″ x 51.2″ x 7.5″ | 1,300 × 2,600 × 190 51.2" x 102.4" x 7.5" | 1,300 × 1,300 × 190 51.2″ x 51.2″ x 7.5″ | 1,300 × 2,600 × 190 51.2" x 102.4" x 7.5" |
| Table size (mm)/(in) | 1,300X1,300 51.2″X51.2″ | 1,300X2,600 51.2″X102.4″ | 1,300X1,300 51.2″X51.2″ | 1,300X2,600 51.2″X102.4″ |
| Workpiece clamping method | Vacuum suction cups / T profiles | Vacuum suction cups / T profiles | Vacuum suction cups / T profiles | Vacuum suction cups / T profiles |
| Auxiliary workbench material | Aluminum alloy | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Vacuum table zoning control | Zone 2 | Zone 2 | Zone 2 | Zone 2 |
| Vacuum chuck slot width (mm)/(in) | 6 0.236 | 6 0.236 | 6 0.236 | 6 0.236 |
| Suction cup screw hole specifications | M8*21mm | M8*21mm | M8*21mm | M8*21mm |
| Maximum working load (kg)/(lb) | 500 1,100 | 1,000 2,200 | 500 1,100 | 1,000 2,200 |
| Machine tool main structure | Gray cast iron + marble | Gray cast iron + marble | Gray cast iron + marble | Gray cast iron + marble |
| Machine tool outer sheet metal structure | half-mask | half-mask | half-mask | half-mask |
| Spindle power (kW) | 7.5 | 7.5 | 11 | 11 |
| Spindle maximum speed (rpm) | 24,000rpm(Φ120) | 24,000rpm(Φ120) | 15,000rpm (Φ150) | 15,000rpm (Φ150) |
| Spindle coolers | oil cooler | oil cooler | oil cooler | oil cooler |
| Tool magazine type and capacity | Inline 16 handles | Inline 16 handles | In-line 12 handles | In-line 12 handles |
| Processing of blowing and flushing | standard equipment | standard equipment | standard equipment | standard equipment |
| Toolholder and Collet Specifications | NBT30-SK10/16 | NBT30-SK10/16 | NBT40-SK10/16 | NBT40-SK10/16 |
| Automatic Tool Setting Instrument | standard equipment | standard equipment | standard equipment | standard equipment |
| Rapid system speed (m/min)/(in/min) | 24 945 | 24 945 | 24 945 | 24 945 |
| Maximum cutting feed rate (m/min)/(in/min) | 15 590 | 15 590 | 15 590 | 15 590 |
| Guide specifications X/Y/Z | Roller 35/35/35 | Roller 35/35/35 | Roller 35/35/35 | Roller 35/35/35 |
| Number of Z-axis sliders (only) | 6 | 6 | 6 | 6 |
| drive system | Vihon Assembly Drive | Vihon Assembly Drive | Vihon Assembly Drive | Vihon Assembly Drive |
| operating voltage | Three-phase 380V/50Hz | Three-phase 380V/50Hz | Three-phase 380V/50Hz | Three-phase 380V/50Hz |
| Rated power of the whole machine(kW) | 16.5 | 17 | 20 | 20 |
| Gas source pressure (MPa) | 0.6 | 0.6 | 0.6 | 0.6 |
| Automatic chip screw | 无 | 无 | 无 | 无 |
| Grease automatic lubrication system | standard equipment | standard equipment | standard equipment | standard equipment |
| Machine weight (kg)/(lb) | 3,800 8,400 | 5,200 11,500 | 3,800 8,400 | 5,200 11,500 |
| Electrical cabinet size (mm)/(in) | 758X608X2,115 29.8″X23.9″X83.3″ | 758X608X2,115 29.8″X23.9″X83.3″ | 758X608X2,115 29.8″X23.9″X83.3″ | 758X608X2,115 29.8″X23.9″X83.3″ |
| Machine size (mm)/(in) | 2,918 × 3,088 × 2,118 114.9" x 121.6" x 83.4" | 2,918 × 4,388 × 2,118 114.9″ × 172.7″ × 83.4″ | 2,918 × 3,088 × 2,118 114.9" x 121.6" x 83.4" | 2,918 × 4,388 × 2,118 114.9″ × 172.7″ × 83.4″ |
| radiator (automobile) | 304 stainless steel water tank 200L | 304 stainless steel water tank 200L | 304 stainless steel water tank 200L | 304 stainless steel water tank 200L |
Note: The double parameters in the charts are in metric and imperial units and are subject to change without notice.
Mtg Dims
Installation dimensions
Detailed installation dimensions of the machine
